Two Platen Bucket Injection Molding Machine 130mm Customizable For Stable

Name: Two Platen Bucket Injection Molding Machine 130mm Customizable For Stable
Brand: OUCO
Price: 1 USD

Brand Name : OUCO

Model Number : OUCO-CWI2100S

Certification : CE, ISO9001

Place of Origin : Wuxi, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per year

Delivery Time : 1 months

Packaging Details : shipping container

Product Name : Customizable Two-platen Injection Molding Machine For Stable Injection Molding

Plastic Processed : PP, PC,PVC

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Type : Automation

Warranty : 1 Year

Machinery Test Report : Provided

Selling Points : Competitive Price

Video outgoing-inspection : Provided

Machine Style : Horizontal

Condition : New

Lead time (days) : About 50 Days

Contact Now

Customizable Two-platen Injection Molding Machine For Stable Injection Molding

Product Details

1. Using a new injection structure with high rigidity and modular design of the injection platform, the injection unit can be customized according to customer needs
2. Dual oil cylinder injection, stable operation of the injection platform, more accurate measurement, and easy precision molding; The rail frame is slightly high, making the injection platform less prone to deformation
3. The hydraulic system adopts a high response proportional valve, which improves the accuracy and stability of mold opening and closing, and shortens the braking response time
4. Unique brake structure effectively reduces component collisions during production
5. The clamping action and high-pressure clamping are completed by two sets of mechanical structures, which have higher stability
6. Compared to traditional models, the molding cycle is shorter
7. The locking mode adopts a four cylinder direct locking structure, ensuring high pressure stability.
Product Paraments

CWI-2100S


Mold	2100S Ⅲ
Clamping Force(Kn)	21000
Space Between Tie-bars(mm)	1800×1600
Clamping Stroke(mm)	3700
Mould Thickness Max(mm)	1700
Mould Thickness Min(mm)	800
Size of Platen(mm)	2620×2420
Ejector Stroke(mm)	400
Ejector Force(Kn)	406
Ejector Quantily	33
Injection Equipment	18000I			30000I
Screw Diameter(mm)	130	140	150	150	160	170
Screw L/D ratio	22.6	21	19.6	22.4	21	19.8
Shot Size(cm3)	8821	10231	11744	15890	18080	20410
Shot Weight((PS)g)	8027	9310	10687	14619	16634	18777
	286.3	332.0	381.0	515.9	586.9	662.6
Injection Pressure(MP)	203	175	152	193	176	150
Injection Rate(mm/s)	1034.0	1513.0	1737.0	1364.0	1533.0	1753.0
Injection Speed(cm3/s	98			77
Screw Speed(g/s0	10~166			10~100
Plasticising Capacityrpm	143.0	152.0	166.0	160.0	184.0	205.0
Oil Tank CapacityL	2000
Heater PowerKw	100			120
Team Control zoneL	5+1
System Pressure MaxMPa	16
Pump OutputL/min	1000
Servo PowerKw	50+50+50+50+7.5
Machine Weightton	110
Machine Dimension(mm)	14500×4200×3530

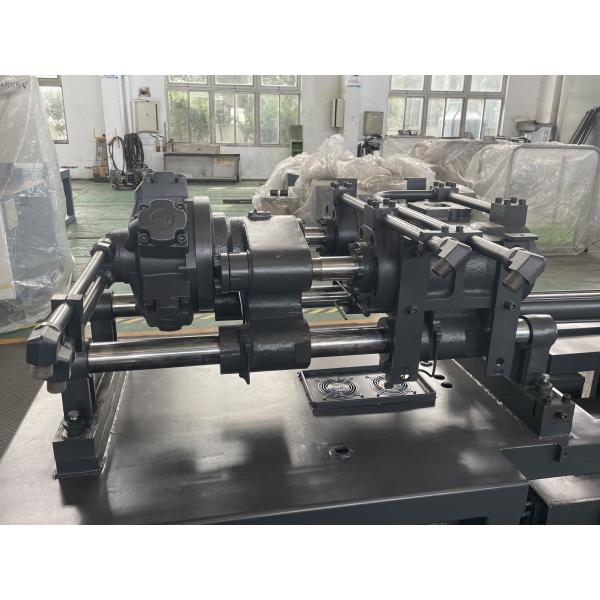

Detailed Pictures
Two Platen Bucket Injection Molding Machine 130mm Customizable For Stable
