PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

Product Categories
OUCO (Wuxi) Injection Molding Machinery Equipment Co., Ltd.
Contact Now

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

Brand Name : OUCO

Model Number : OUCO-300/400/500T

Certification : CE

Place of Origin : Wuxi, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per year

Delivery Time : 1 months

Packaging Details : shipping container

Product Name : Plastic Crate Making Machine, 160 Ton Advanced Injection Molding Systems

Plastic Processed : PP, PC,PVC

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Type : Automation

Warranty : 1 Year

Machinery Test Report : Provided

Selling Points : Competitive Price

Video outgoing-inspection : Provided

Machine Style : Horizontal

Condition : New

Lead time (days) : About 50 Days

Contact Now

Plastic Crate Making Machine, 160 Ton Advanced Injection Molding Systems

As a low-margin product made from recycled materials, plastic crates require high machine productivity. OUCO has developed a special series of products for fruit crates and other products. Plastic crate injection molding machines are perfectly matched with crate molds to ensure higher production capacity and consistent product quality.


Plastic Crate Making Machine Features
1. Longer screw lift time: with double alloy screw barrel, more wear and corrosion resistant.
2. Large shot volume: Specially designed large diameter screw, not only large shot volume, but also shorten the loading time.
3. Shorten cycle time: increase hydraulic system to shorten production cycle and improve production efficiency.
4. More energy-saving: Matching high-efficiency imported variable pump to reduce production cost.
5. More stable: Adopt new rigid frame, better damping effect, more stable production.

Product Paraments

Model 300T 400T 500T
Screw Specifications A B C A B C A B C
Screwdi ameter mm 50 60 65 65 75 80 70 75 85
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 638 918 1078 1C75 1431 1628 1481 1700 2184
Shot weight (PS) g 593 853 1002 1C11 1345 1530 1377 1581 2031
injection rate(Ps) g/S 330 475 558 426 568 646 G03 693 890
Injection pressure MPa 286 198 169 242 182 160 209 182 142
Inject on stroke mm 325 360 385
Max. injection speed mm/s 178 156 166
Screw speed r/min 0-200 0-200 0-200
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 63 75 94
Displacement ml/r 163 100+100 125+125
number of Motors PC 1 2 2
Heater power kW 27 35 41
Number oftemp. control zones 5+1 5+1 5+1
Clamping force kN 3000 4000 5000
Opening stroke mm 800 900 1000
Tie bar distance W×L mm*mm 680x680 760x660 860x760
Min. mold thickness mm 210 300 300
Max. mold thickness mm 680 730 800
Ejector stroke mm 190 190 210
Ejector force forward kN 62 80 110
Number of ejector bar PC 1+12 1+12 1+12
Oil tank capacity L 510 680 850
Machine dimensions(LxWxH) m*m*m 7.7x1.8x1.8 8.2x1.9x1.9 87x2.0x2.1
Machine weight Ton 10.5 15 19

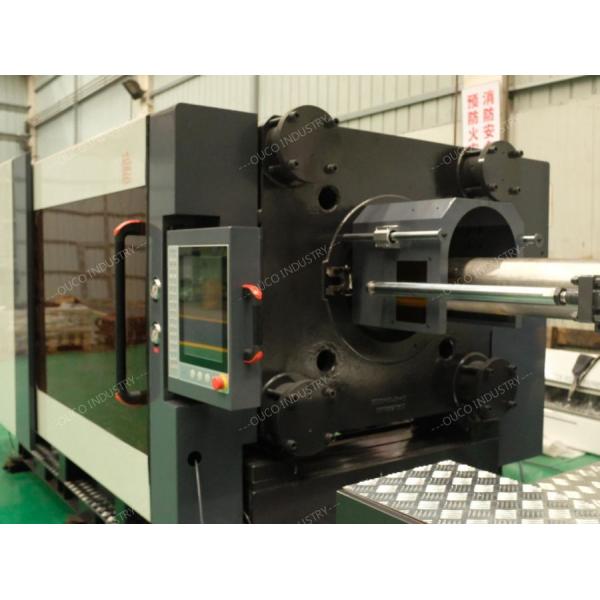

Detailed Pictures

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

PVC Plastic Crate Making Machine 300 Ton Advanced Injection MoldingPVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

Company Profile

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding

PVC Plastic Crate Making Machine 300 Ton Advanced Injection Molding
